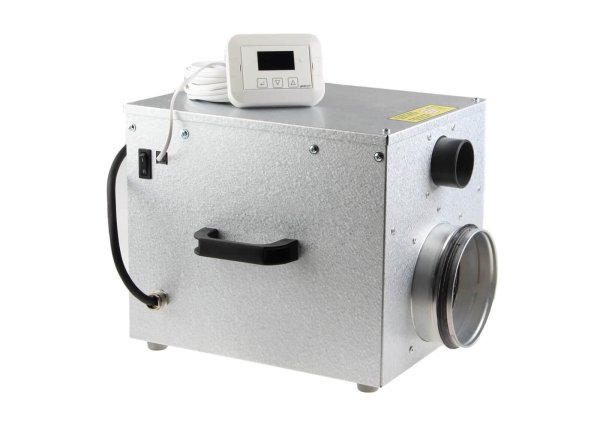

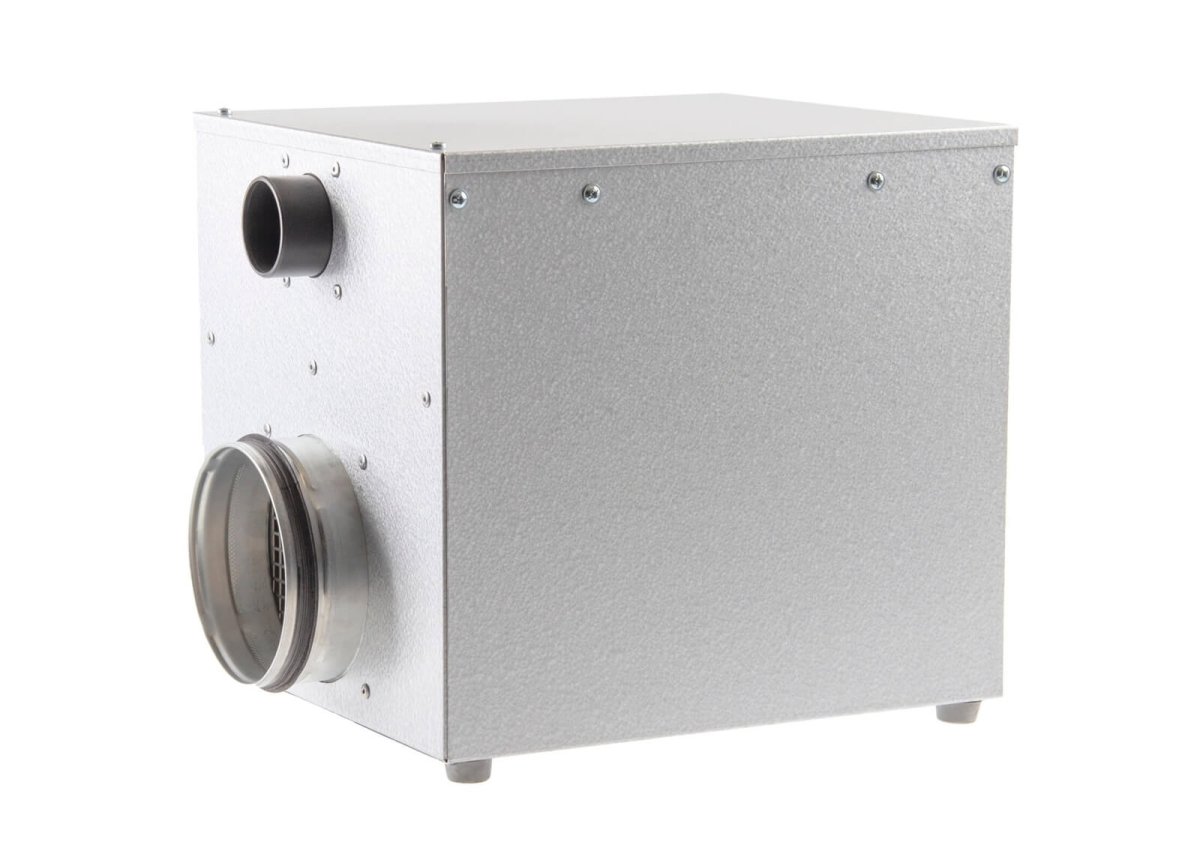

bruksanvisning-evodry-12p.pdfDehumidifier EvoDry 12P
Item ID:20121
EAN: 7350072461371
This item has been discontinued.
This item is no longer available for sale.
Bail handleItem ID: 180000U-shaped handle for lid and carrying handle suitable for Acetec ventilation units and dehumidifiers.
Bottom board EvoDry 4.0Item ID: 240001Baseboard suitable for dehumidifiers with EvoDry 4.0 control system .

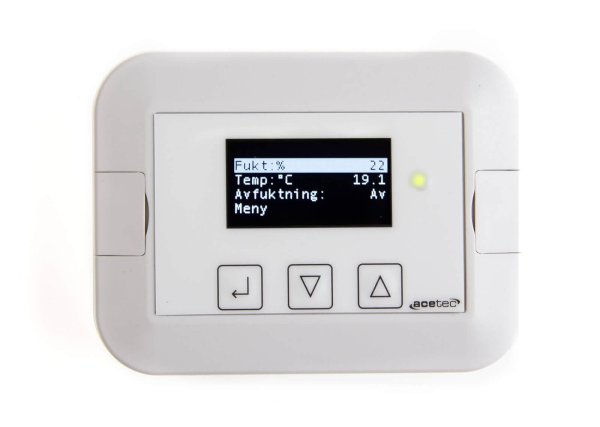

Control panel MPO-01 AvfuktarItem ID: 340159Control panel suitable for Acetec dehumidifiers with EDC control equipment from version 1.2.0 onward.
Fan A50/PSE 6.0 K3G133RA0707Item ID: 250009
Filter EvoDry 12 20-PackItem ID: 2051120-pack filter suitable for Acetec dehumidifier EvoDry 12.
Filter EvoDry 12 3-PackItem ID: 205103-pack filter suitable for Acetec dehumidifier EvoDry 12.
Modular cable 15mItem ID: 140000Modular cable 15 meters. Fits all our dehumidifiers and ventilation units with modular connector.
Outlet unit EvoDry 6/12/18/24Item ID: 299067Outlet unit suitable for EvoDry 6, 12, 18 and 24 dehumidifiers.
Processor board EDP 1.0Item ID: 240036Processor board suitable for dehumidifiers with EDC-01 control equipment and with control panel MPO-01.
PTC Element HRKK 18/22Item ID: 110049PTC element HRKK 18/22 suitable for Acetec dehumidifiers EvoDry 12 and 18.![Rotor unit EvoDry 12 RETervdel]()
Rotor unit EvoDry 12 RETervdelItem ID: 299120Rotor unit EvoDry 12 – Spare part is a complete replacement unit for the desiccant rotor in the EvoDry 12.![Våtgasslang 51x1500]()
Wet air hose 51x1500Item ID: 282030Wet air hose suitable for EvoDry 6, 12, 18 and 24 dehumidifiers.
- Replaced by
- 20012
- Warranty
- AG20DDU
- CE
- Yes
- Dehumidifier Type
- Desiccant
- Operating Range (°C)
- -20 - +40
- Suitable up to (m³)
- 200
- Control Equipment
- EDC-01
- Wet Air Flow (m³/h)
- 29/16
- Dry Air Exhaust Outlet (mm)
- 50
- Dry Air Exhaust Outlet (mm)
- 125
- Capacity at 20°C/60% RF (l/24h)
- 14
- Capacity up to (l/24h)
- 18
- Sound Level (dBA)
- 59
- Hygrostat Setting (%)
- 20-80
- Output, Fan, nom (W)
- 36/9
- Effect Usage dehumidification (W/h)
- 930/550
- Connection Voltage (V)
- 1x230V
- Fuse (A)
- 10
- IP rating
- IP21
- Depth (mm)
- 307
- Width (mm)
- 257
- Height (mm)
- 265
- Weight (kg)
- 9,4
- Filter Class
- G4
- Surface/Material
- AluZink
- Corrosion class
- C4
