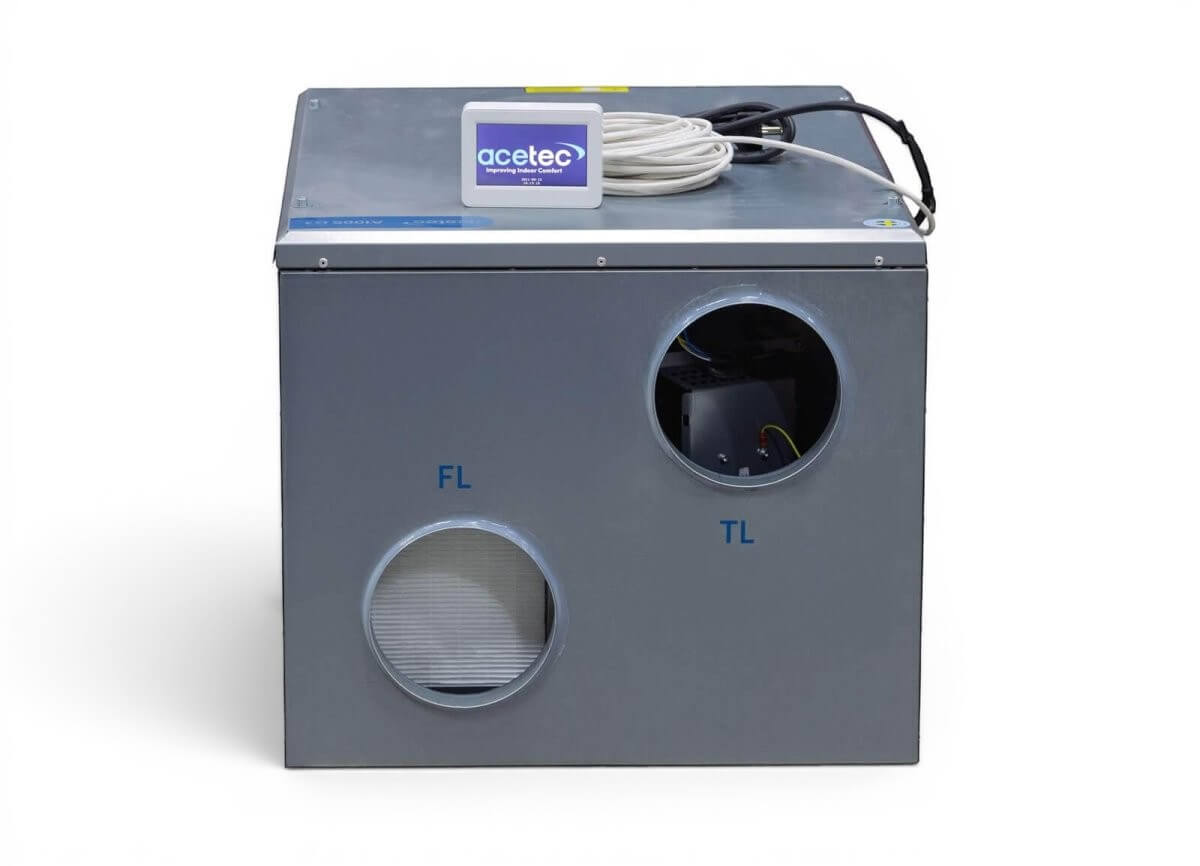

EvoAir A100S G3 Ventilation Unit

EvoAir A100S G3 is a compact heat-recovery ventilation unit with high performance and energy-efficient operation. The unit combines modern controls with low weight and compact dimensions, simplifying both transport and installation. EvoAir A100S G3 is manufactured in Älvsbyn, developed using experience from Nordic climate conditions and designed for reliable operation all year round. The unit has a third-party verified Environmental Product Declaration (EPD). The unit is Eurovent-certified and suitable for homes up to 180 m², as well as smaller offices and other premises.

The design builds on many years of experience in ventilation solutions and functional industrial design focused on energy-efficient, demand-based ventilation. The unit is particularly well suited to residential ventilation but also works very well in smaller premises such as offices, daycare centres and workshops. EvoAir A100S G3 is equipped with a rotary heat exchanger with efficiency of up to 89% and energy-efficient EC fans for low energy consumption.

Where can EvoAir A100S G3 be installed?

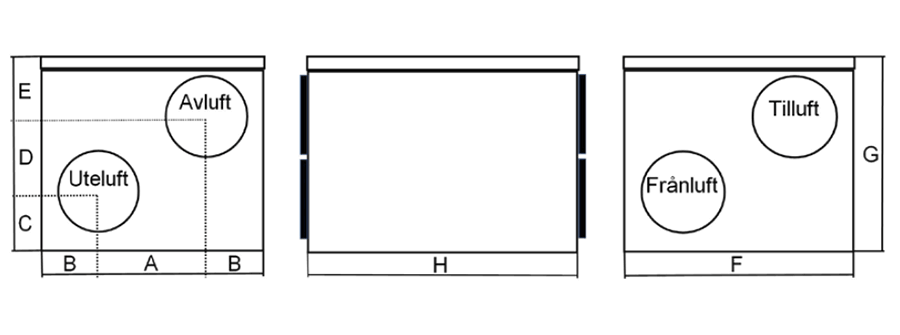

The unit is ideally installed in an attic, storage room or similar space. Thanks to its compact dimensions (557 × 483 mm) and low weight, it is easy to transport even through smaller attic hatches. Removing the cover further reduces the external dimensions. The short design also makes installation easier in low attics and other spaces where installation space is limited.

EvoAir A100S G3 is supplied complete with user-friendly controls and a separate 4.3-inch touch display as standard. This provides a complete solution from the outset without the display needing to be added as a separate option. The post-heating coil and sensors are pre-installed internally to simplify installation and commissioning. The unit is ready for operation with connection via plug or connector.

EvoControl Touch

Control is via the supplied 4.3-inch colour touch display, providing a clear and intuitive overview of the unit's functions and operation. The system has a wired network connection for stable communication, and the EvoCloud service is included as standard. Via EvoCloud, the unit can be managed and monitored remotely from a mobile phone, tablet or computer. The control system allows ventilation to be adapted to demand, measured values and history to be reviewed, and current operating status to be clearly monitored.

For integration with other control and building-management systems, Modbus TCP is also supported, providing good options for integrating EvoAir A100S G3 into a supervisory control system.

Features

• 4,3-inch touchscreen included as standard
• EvoCloud for cloud-based control and monitoring
• Remote management via phone, tablet or computer
• Timer and scheduling
• Pressure control
• Air-quality control
• Humidity control
• Logging of measurements and history
• Plain text and parameters
• Airflow diagram
• Support for Modbus TCP

Some functions may require accessories.

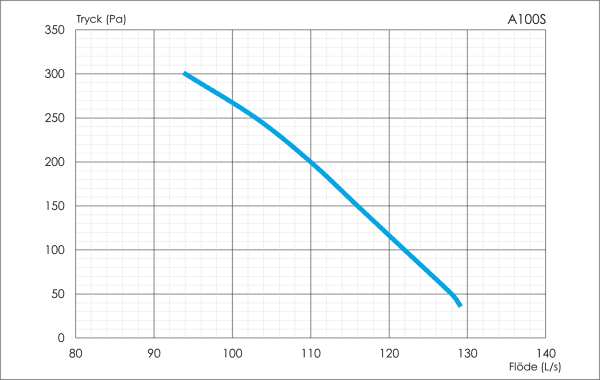

Pressure and airflow chart
