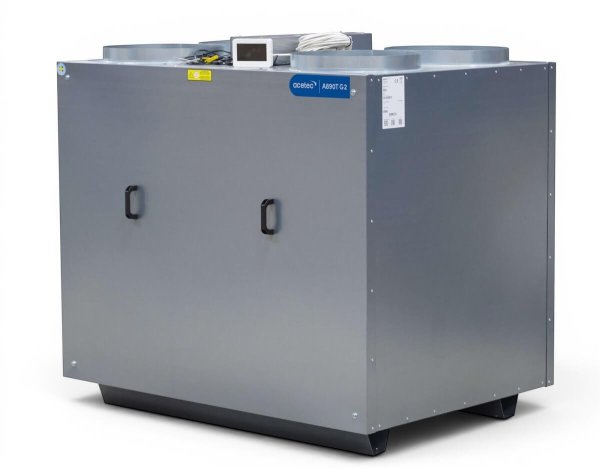

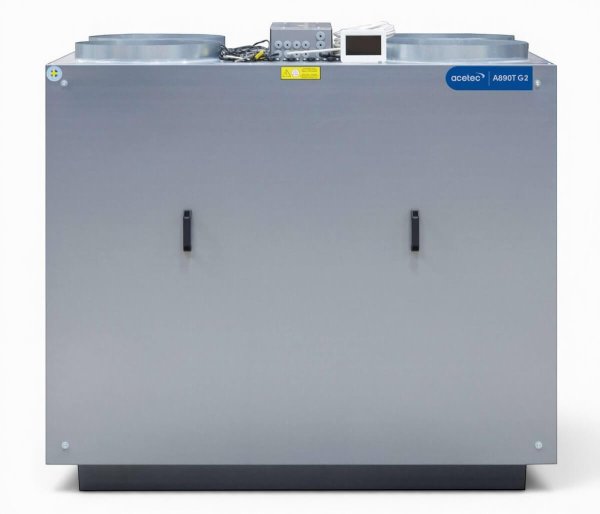

EvoAir A890T G2 Ventilation Unit
Item ID:30890
EAN: 7350072461333
EvoAir A890T is a top-connected ventilation unit with compact dimensions and low weight.
EvoAir A890T is a top-connected MVHR unit with an airflow range of up to 1100 l/s, designed for larger buildings and premises with high demands on ventilation and operational reliability. The unit is manufactured in Älvsbyn, builds on Acetec's many years of experience in ventilation and features a well-designed industrial construction. It is built for the Nordic climate and reliable year-round operation. The unit has a third-party verified Environmental Product Declaration (EPD).
EvoAir A890T combines high capacity with an installer-friendly design for projects where flexibility and simple system integration are important. The unit is supplied as standard with the EvoControl control system, a separate 4.3-inch touch display and the EvoCloud cloud service. This gives you a complete control solution from day one, with the option of managing and monitoring the unit remotely via phone, tablet or computer.

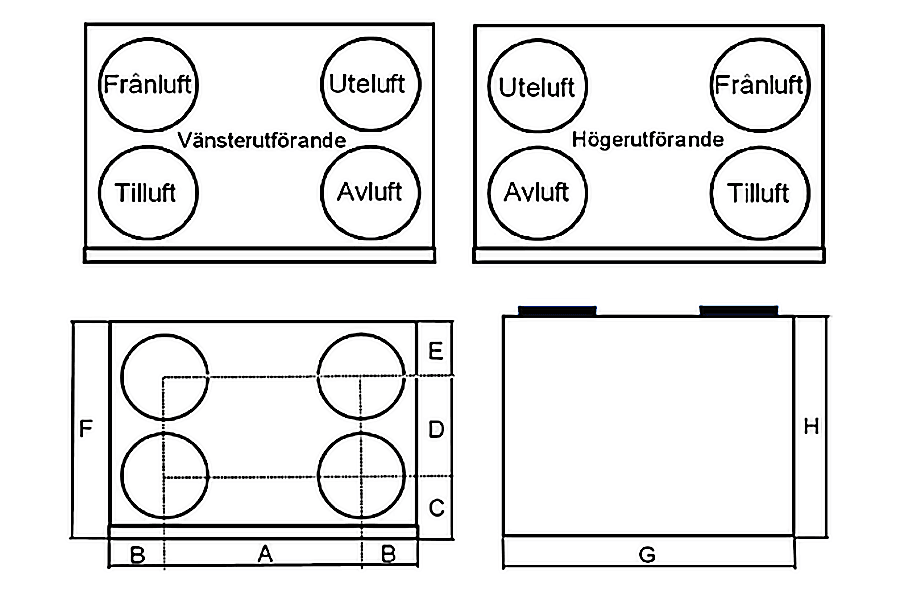

The unit has configurable right-/left-hand connections, providing good installation flexibility and making it easier to adapt to different mounting conditions and project requirements. Together with the top duct connections, this makes it easy to plan an efficient installation that fits the available space.
EvoControl Touch

The supplied 4.3-inch colour touch display gives a clear and intuitive overview of the unit's functions and operation. The display is included as standard, so there is no need to buy an additional control panel.
The system connects to the network via cable for stable communication, and the EvoCloud cloud service is included as standard. With EvoCloud, you can control and monitor the unit remotely from your phone, tablet or computer – adjusting operation as needed, following measurements and history, and quickly checking the current operating status. Demand-controlled operation and robust components also help keep operating costs low, year after year.
With Modbus TCP support, the unit integrates easily into a supervisory control or building management system.
Functions
- 4.3-inch touch display included as standard
- EvoCloud for control and monitoring via the cloud
- Remote management via phone, tablet or computer
- Timer and scheduling
- Pressure control
- Air quality control
- Humidity control
- Logging of measurements and history
- Plain-text display and parameters
- Flow diagram display
- Modbus TCP support
Some functions may require accessories.

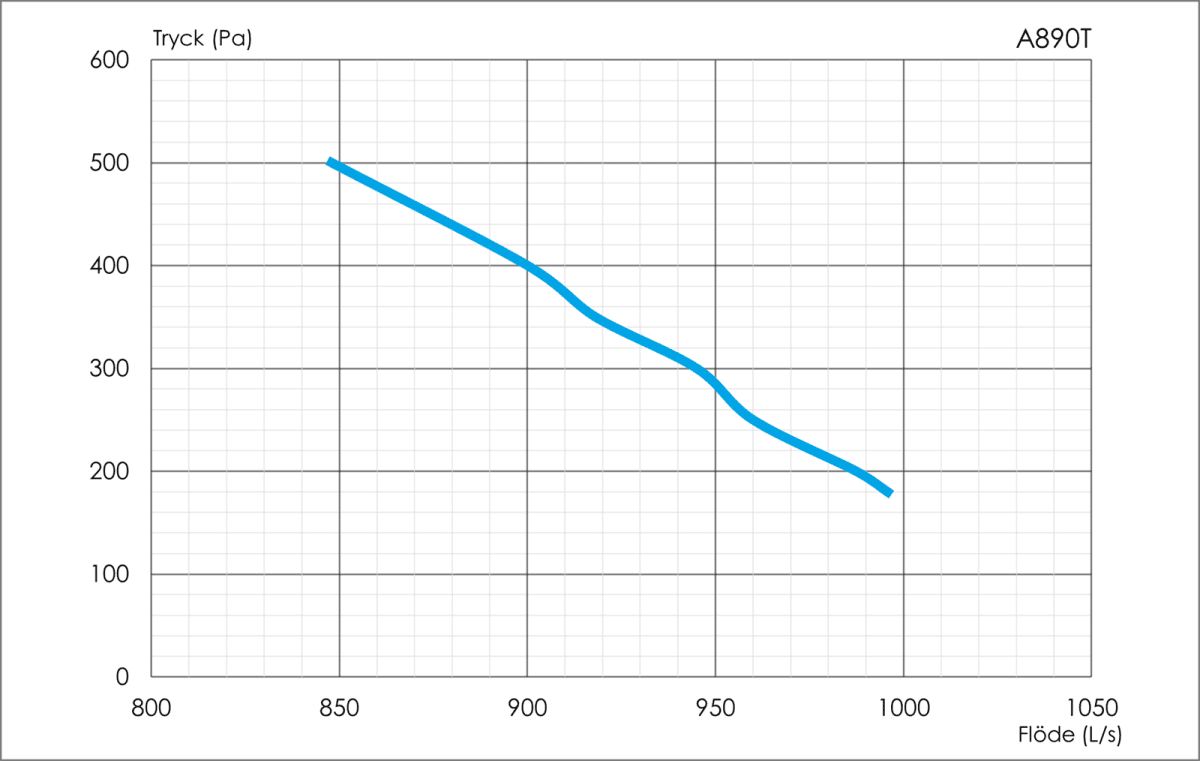

Pressure and airflow chart

- CO2 air quality sensor duct QItem ID: 340113Siemens CO2 duct air quality sensor QPM 2100. Fits Acetec ventilation units with EvoControl.
- CO2 air quality sensor room QFItem ID: 340099Siemens QPA 2000 CO2 room air quality sensor. Suitable for Acetec ventilation units. Connection cable between unit and sensor is not included.
- Damper 400 Type 4 with motor shelfItem ID: 380141Damper 400 type 4 with motor shelf
- Damper motor Fjäder 230V GPC321Item ID: 340098Damper motor for motor-driven circular dampers for Acetec ventilation units A50S–A900ST.
- Electric Heater Battery 400/6kw EKA NIS 400-6.0-3f KItem ID: 340233
- Electric Heater Battery 400/9kw EKA NIS 400-9.0-3f KItem ID: 340234
- Filter A590/A600/A890/A900 ePM1 55%Item ID: 380062Filter for Acetec ventilation units EvoAir A590T, A600ST, A890T, A900ST. We recommend replacing the filter in your Acetec ventilation unit at least once per year.
- Humidity Sensor EvoControl DuctItem ID: 399175Humidity sensor for duct mounting. Installed in exhaust air duct for humidity control with EvoControl control equipment. Connection cable not included.
- Humidity Sensor EvoControl RoomItem ID: 340124EvoControl room humidity sensor for ventilation units with EvoControl.
- Presence sensor Siemens PIR-TFTItem ID: 340114Siemens PIR-TFT-550-B presence detector is a very reliable detector with dual elements. Fits Acetec ventilation units with EvoControl.
- Pressure transmitter QBM 68.2525Item ID: 340097Pressure transmitter Siemens QBM 68.2525 for Acetec ventilation units with EvoControl. Connection cable between unit and sensor is not included.
- Temp sensor EvoControl & AVC-02Item ID: 399174Temperature sensor for room mounting. For room temperature control with EvoControl or AVC-02 control equipment.
- Water coil kit A590/A600/A890/A900/R50/R70 EC CoolingItem ID: 399157Cooling water coil kit suitable for Acetec A590T, A600ST, A890T, A900ST, R50 and R70 EvoControl ventilation units.
- Water coil kit A590/A600/A890/A900/R50/R70 EC HeatingItem ID: 399156Heating water coil kit suitable for Acetec A590T, A600ST, A890T, A900ST, R50 and R70 EvoControl ventilation units.
- Bail handleItem ID: 180000U-shaped handle for lid and carrying handle suitable for Acetec ventilation units and dehumidifiers.
- Battery CR2032Item ID: 340090
- Brush strip DX1444 17 mmItem ID: 380011Brush strip DX1444 17 mm suitable for rotors for older Acetec air handling units.
- Cable EvoControl 15mItem ID: 399146Cable For Display Unit Suitable For Air Handling Unit And Dehumidifier With EvoControl.
- Cable set 3x1.5 2.5mItem ID: 110003Cable set 3x1.5, length 2.5 m. Fits Acetec dehumidifiers, air purifiers and ventilation units.
- Capacitor rotor motor 25w ZD 1:12.5 tacoItem ID: 150018
- Circuit board EC EvoAir RelayItem ID: 399297
- EvoControl Display Spare PartItem ID: 399178Display For Acetec EvoControl.
- Fan 8300100046Item ID: 350038
- Filter A590/A600/A890/A900 ePM1 55%Item ID: 380062Filter for Acetec ventilation units EvoAir A590T, A600ST, A890T, A900ST. We recommend replacing the filter in your Acetec ventilation unit at least once per year.
- Pulley 80x2. rem 8mm. shaft 10mmItem ID: 380180
- Relay main boardItem ID: 310068Relay for main board 24V fits main board AVC-02- AVC-01.
- Rotation sensor 1000 mm including magnetsItem ID: 340086Rotation sensor including 2 magnets. Fits all Acetec ventilation units.
- Rotor motor 25w ZD 1:12.5 tacoItem ID: 340071Rotor motor 25W suitable for ventilation units A590T, A890T, A600ST and A900ST.
- Round belt 8.0 mm greenItem ID: 392010Round belt 8.0 mm green.
- Temp sensor A-serien 3000 mmItem ID: 340084Temperature sensor with a cable length of 3000 mm. Fits Acetec EvoAir ventilation units and EvoDry dehumidifiers.
- Warranty
- AG20AHU
- CE
- Yes
- EPD (Environmental Product Declaration)
- Yes
- EcoDesign
- Yes
- ModBus
- ModBus TCP/IP
- Control Equipment
- EvoControl Touch
- Control via App/Cloud
- Yes
- Flow range (l/s)
- 250-1100
- Airflow range (m³/h)
- 900-3960
- Connection Options
- Top
- Adoptable Right/Left connection
- Yes
- Placement
- Floor
- Installation in cold environments
- Yes
- Duct Size (mm)
- 4x400
- Heat Exchanger
- Rotating Heat Exchanger
- Output, Fan, nom (W)
- 2x1500
- Connection Voltage (V)
- 3x400V
- Fuse (A)
- 10
- IP rating
- IP21
- Integrated electric heater
- No
- Electric Battery Kit Aft (accessory)
- Yes
- Electric heater kit Pre (accessory)
- No
- Water heater kit (accessory)
- Yes
- Cooker Hood (accessory)
- No
- Room CO2 sensor (accessory)
- Ja
- Duct CO2 sensor (accessory)
- Yes
- Duct humidity sensor (accessory)
- Yes
- Room humidity sensor (accessory)
- Yes
- Flow sensor (accessory)
- Yes
- Presence sensor (accessory)
- Yes
- Room temperature sensor (accessory)
- Yes
- Pressure sensor (accessory)
- Yes
- Depth (mm)
- 950 (utan dörrar 882)
- Width (mm)
- 1355
- Height (mm)
- 1060
- Weight (kg)
- 200
- Filter Class
- F7
- Surface/Material
- Zn-Al-Mg-coated steel
- Corrosion class
- C5
